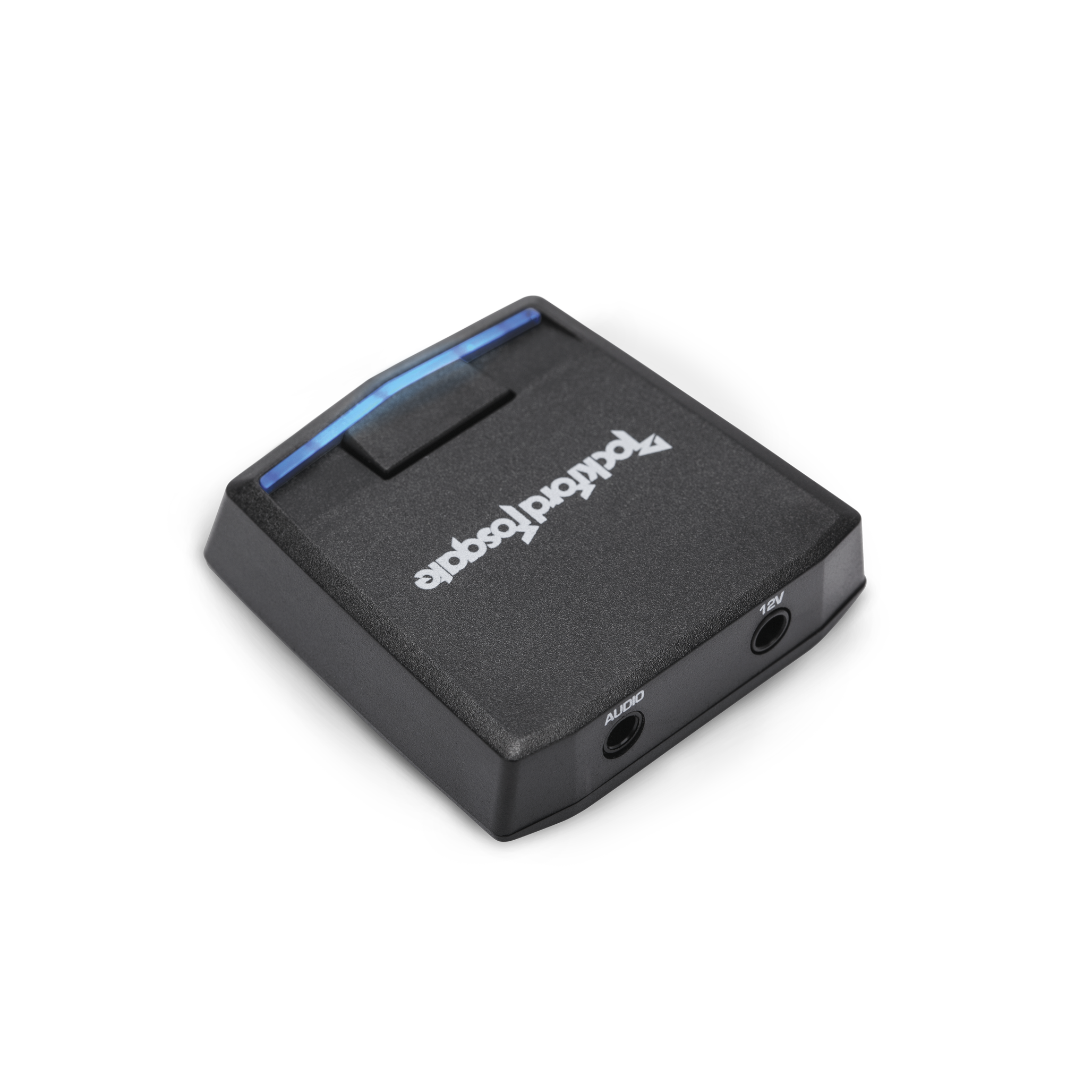

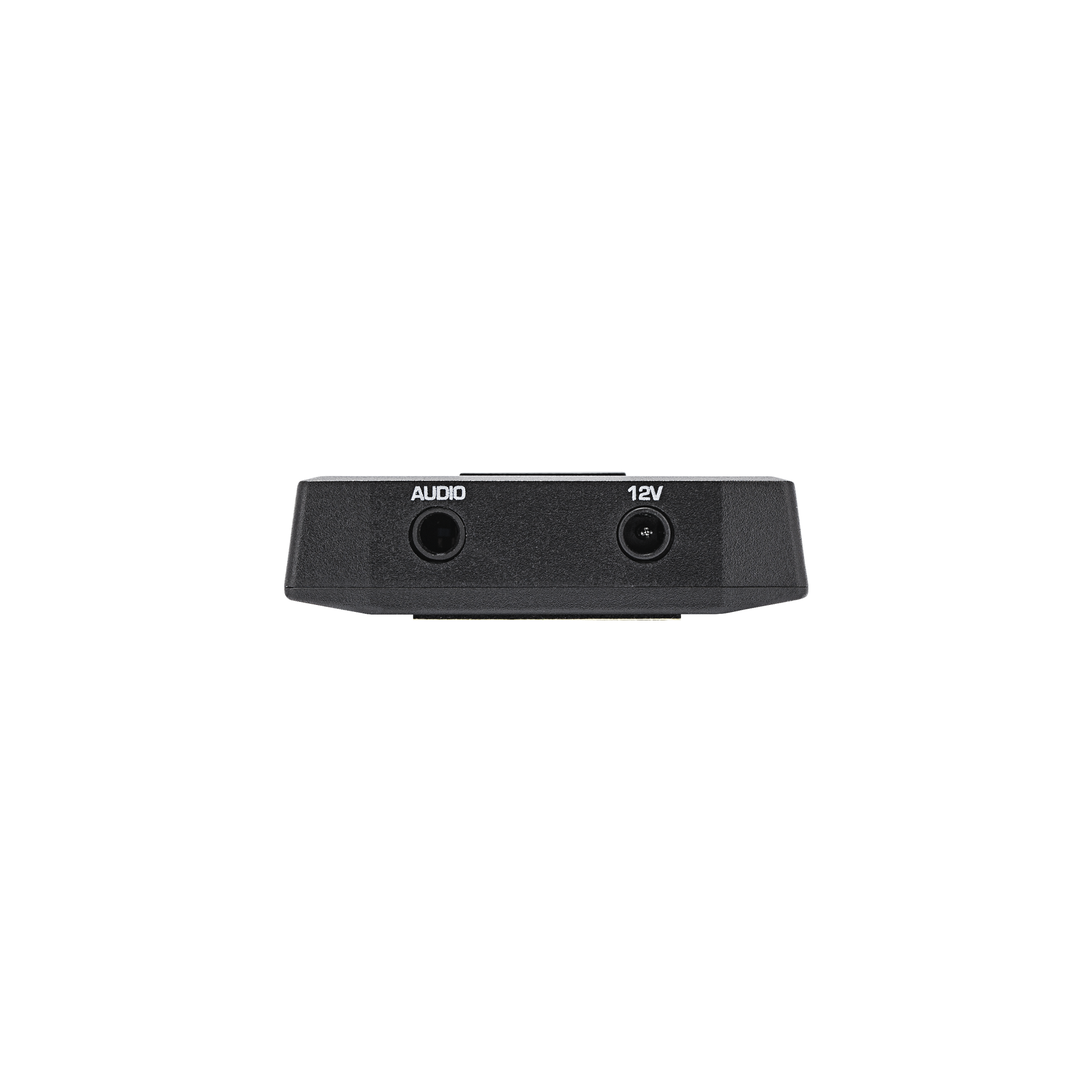

Rockford Fosgate – Universal Bluetooth to RCA Adaptor

Rockford Fosgate - Universal Bluetooth to RCA Adaptor
Rockford Fosgate - Universal Bluetooth to RCA Adaptor - Image 2
Rockford Fosgate - Universal Bluetooth to RCA Adaptor - Image 3

Rockford Fosgate – Universal Bluetooth to RCA Adaptor

R1762,96 Inc Vat.

36 in stock

SKU: RFBTRCA Category:

Description

The RFBTRCA is a universal Bluetooth receiver for wireless audio streaming and features RCA outputs for easy connection to an audio system.

Overview

The RFBTRCA universal Bluetooth™ adapter allows to wirelessly stream media (music library, Pandora, Rhapsody, etc) from a Bluetooth™ enabled device through stereo RCA output jacks. Auxiliary input powered by the vehicle’s 12V accessory socket. Easy 1-button pairing function binds to Bluetooth™ enabled device and chimes on subsequent connections. Supplied 1/8” (3mm) cable sends audio through RCA outputs directly feeding audio system. Compatible with most Bluetooth™ devices, including smartphones, tablets, and laptops.

FEATURES AT A GLANCE

  • Simple one button pairing
  • 12VDC wired connection
  • Bluetooth™ V3.0+EDR
  • Bluetooth™ streaming receiver
  • Compatible with Apple & Android Bluetooth™ devices
  • 1/8″ (3.5mm) to stereo RCA audio output
  • Auto connect after initial pairing
  • Class 2 output power
  • 3 ft. (1m) 1/8″ (3.5mm) to male RCA audio cable included
  • 33 foot range
  • 1 Year Warranty



Specifications

Output Voltage800 mV
Output Impedance—
Input Impedance—
Frequency Response20 Hz – 20 kHz
Operating Voltage9-16 VDC
8″ long coaxial power -to- bare wire +/-
Connector Type C: 3.8 mm OD, 1.4 mm ID
Shipping Weight0.28 Lbs. (0.127 Kg.)
Dimensions (H x W x D)0.51″ x 1.90″ x 1.95″
(13 mm x 48 mm x 49 mm)

MountingDash/Surface Mount
Processor TypeStreaming Device
Signal ProcessingBluetooth™ Profile: V3.0 + EDR
THD+N<1.0 Signal-to-Noise>90 dB (DAC)
>80 dB (Max Output)
Signal Output2-ch audio
3 ft. (1m) long output cable
1/8″ (3.5mm) stereo -to- L/R male RCA
Signal InputWireless Bluetooth
LED IndicatorsPower: Center Solid Blue
Pairing: Left/Right Blinking Blue
Connected: All Solid Blue

Key features

Direct 12V Hardwiring: Unlike cigarette-lighter adapters, the Rockford Fosgate RFBTRCA features bare positive and negative power leads. It wires straight into an accessory circuit, allowing for a completely hidden, clean installation behind dashboards or inside fairings. Conversion Cable Included: The module features a 3.5mm female output, but includes a 3-foot (1-meter) 3.5mm-to-stereo-RCA male adapter cable. This connects directly to the low-level RCA inputs on any aftermarket amplifier or equalizer. Enhanced Data Rate (EDR): Leverages Bluetooth 3.0 + EDR to expand data bandwidth up to 3.0 Mbps. This limits wireless compression and yields highly accurate, clear audio playback across the audible frequency spectrum. One-Button Pairing: A single pairing button simplifies initial device linking. The faceplate features tri-state blue LED indicators to display power, pairing mode, and active connection status.
